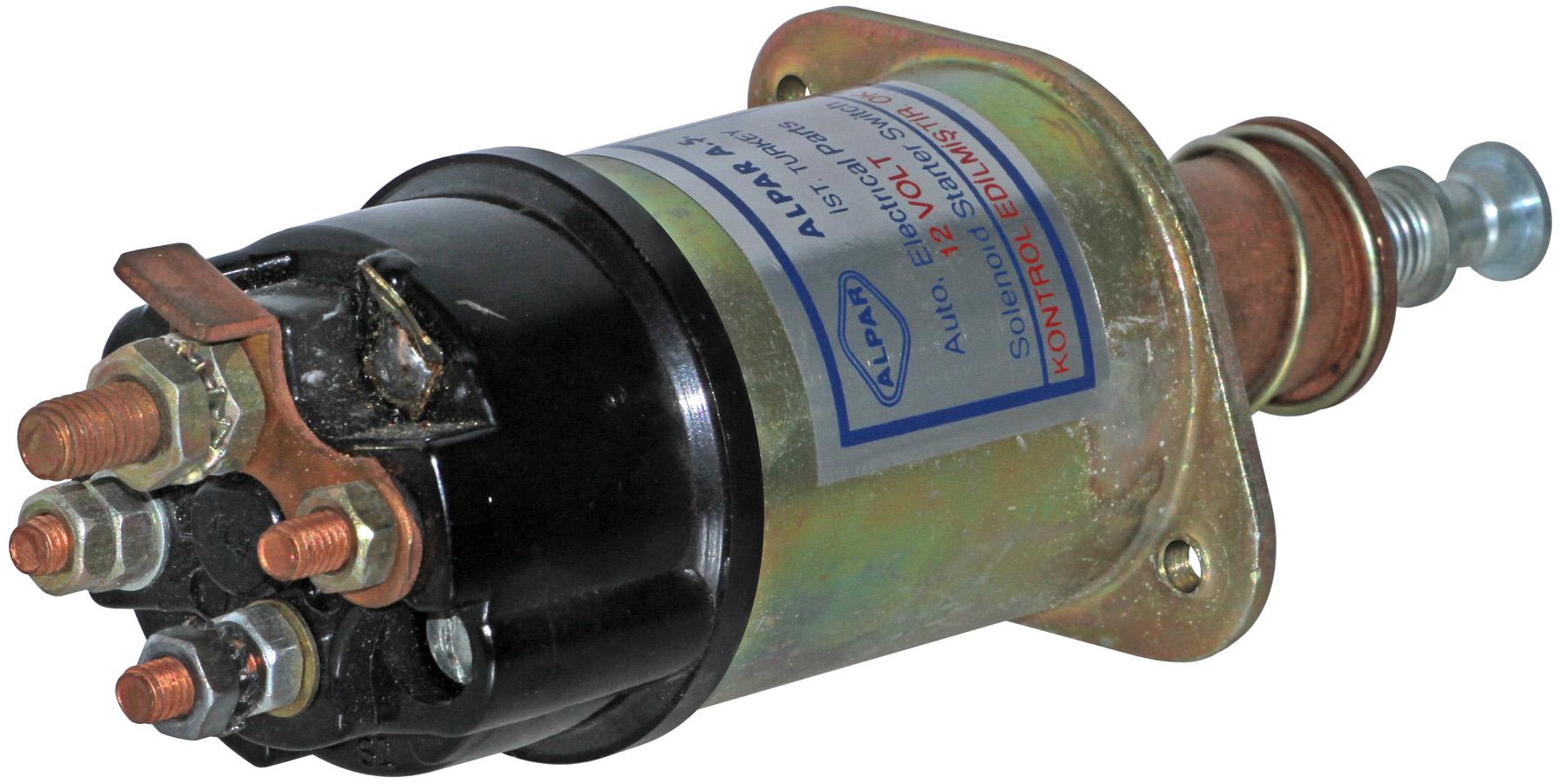

02412 - LUCAS M50 REPLACEMENT STARTER DOUBLE STAGE SOLENOID

Product Information:

APPLICATIONS: Bedford Trucks, IHC, York Diesel. Lucas M50 Starters. Double Stage Solenoid.

STARTER #?S: 24349A/H, 24416A/E, 26349, 26349A/B, 26349D/H, 26416A/D, 26434A/B.

LESTER #?S: 18262.

COMPONENTS: Cap – 03405; Contact – 03920.



Manufacturer: LUCAS

IAT Product Number: 02412

Original Numbers:?Lucas: 263005, 77040, 77088, TOB183, 60933083; GM: 2716635, 91133402; WAI: 66-9208.

Additional Information: Voltage: 12V, Body OD: 54.0 mm, Mount Type: 2 Hole Mt. Flange, Mounting Threads: M6 x 1.0, Cap Design: BOLT-ON, Battery Terminal: M8 X 1.25, Motor Terminal: M6 x 1.0, Switch Terminal: Male Spade, SHUNT COIL TERMINAL: M6 x 1.0 Post;
