Product Information:
APPLICATIONS: Chevrolet / GMC Heavy Duty Trucks; Isuzu Heavy Duty Trucks 3.9L Diesel; Nissan Sentra Diesel.

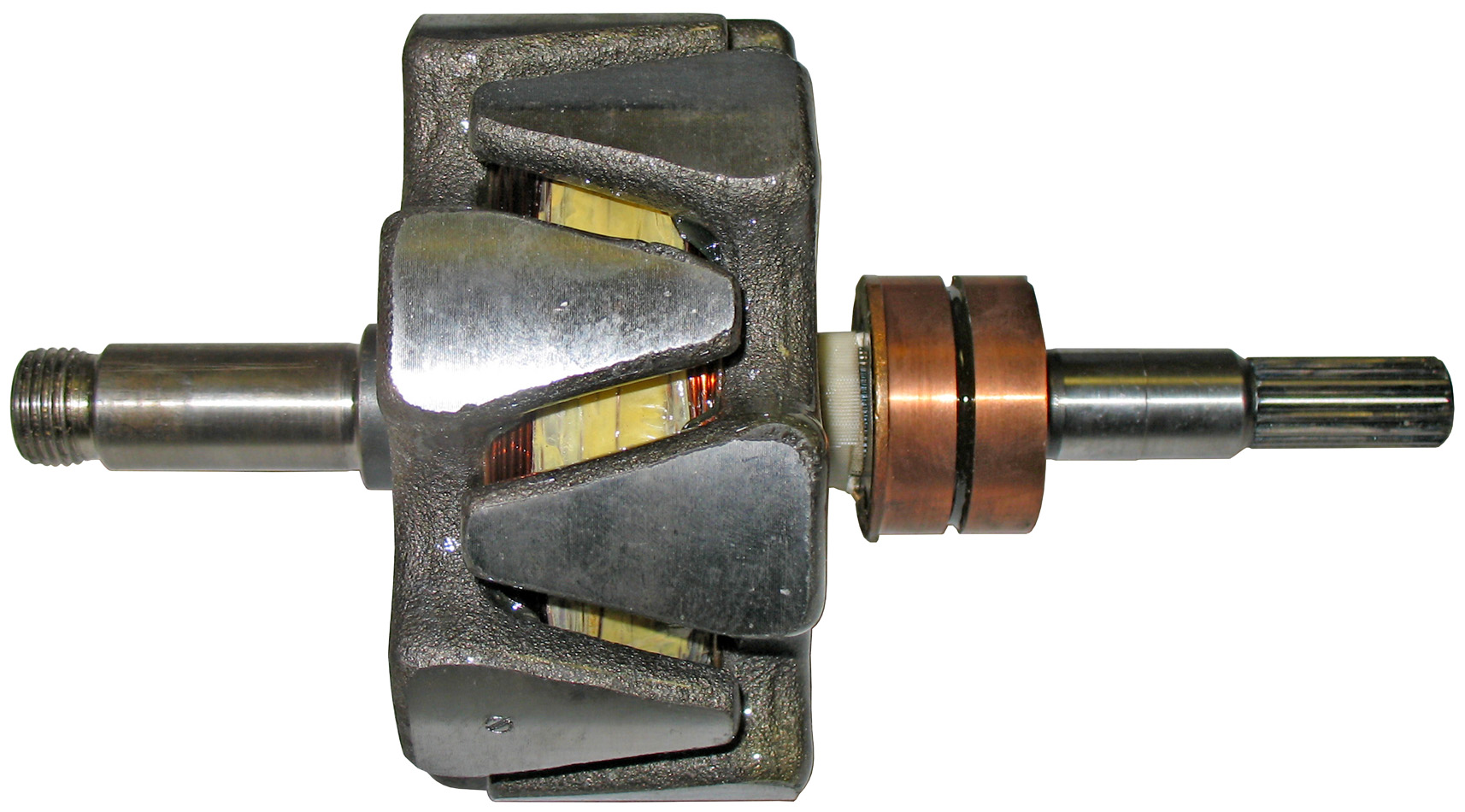

Hitachi 70 Amp. EF/IR Alternators.
ALTERNATOR #’S: LR170-401; LR170-402; LR170-A; LR170-B; LR170-C; LR170-F; LR170-404; LR170-404B; LR170-404C; LR170-410; LR170-421; LR170-421B; LR170-424; LR170-424B.
LESTER #’S: 14753.
DIMENSIONS: Rotor D – 103.3 mm; Core L -49.1 mm; Shaft L – 193.5 mm; DE Shaft L – 55.0 mm; DE Shaft D – 17 mm; SRE Shaft D – 15 mm; Slip Ring D – 35.0 mm; Splines – 16; Threads – 16 mm-1.5; Poles – 6.
Manufacturer: HITACHI
IAT Product Number: 17501
Original Numbers: Nissan: 23108-V7200, 23108-54A00; Hitachi: L160-31007, L170G-1100.
Additional Information: Spline: 16; Pole: 6; Threads: 16 mm-1.5; Slip Ring OD: 35.0 mm; SRE Shaft Diameter: 15 mm; DE Shaft Diameter: 17 mm; DE Shaft Length: 55.0 mm; Shaft Length: 193.5 mm; Core Thickness: 49.1 mm; Core Diameter: 103.3 mm; Amperage: 70 Amp; Voltage: 12V.
