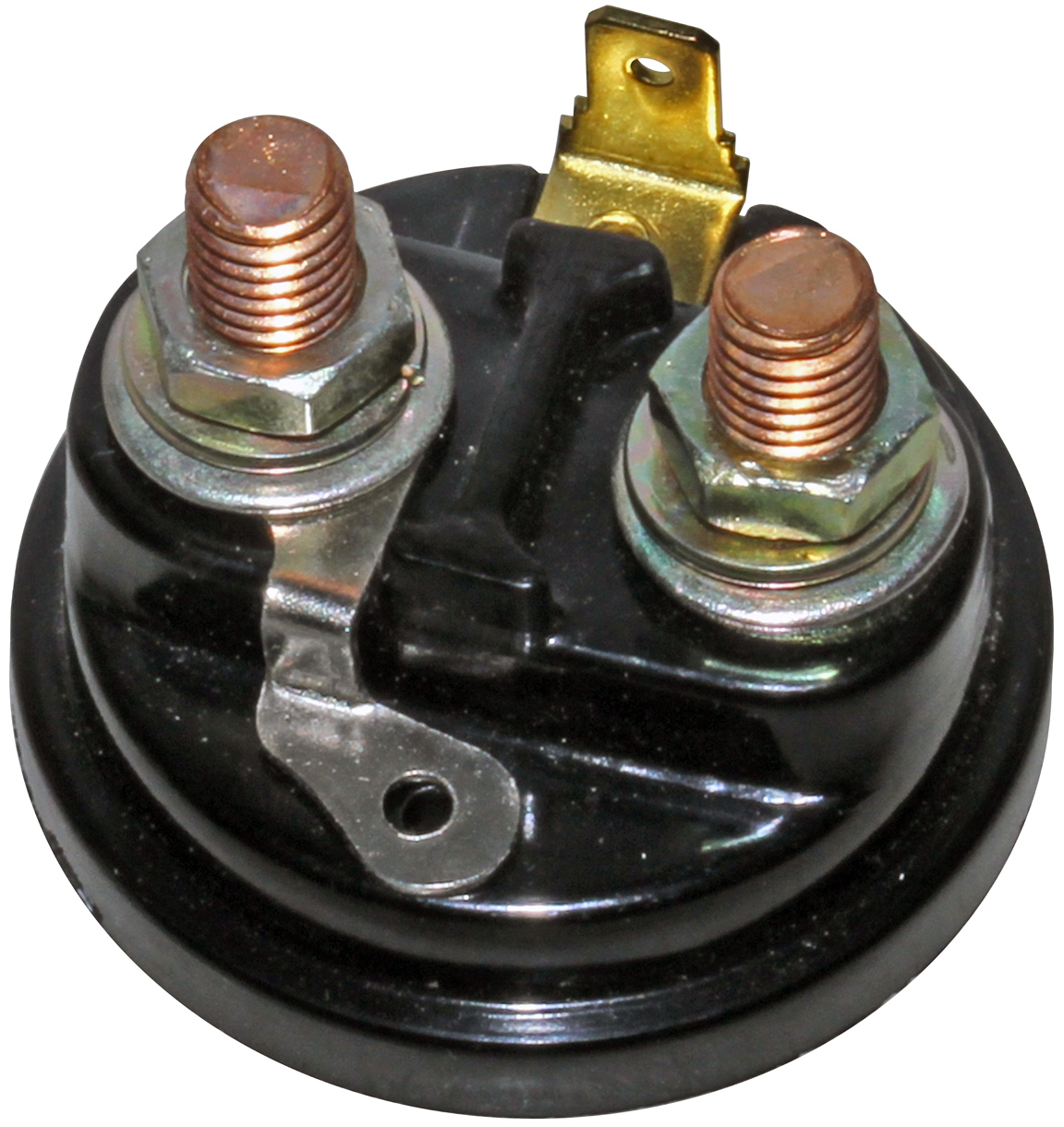

03502 - HITACHI OSGR REPLACEMENT STARTER SOLENOID CAP

Product Information:

APPLICATIONS: Nissan Cars / Trucks, Ford Tractors, Iseki, Ishikawajima, Isuzu Engines, John Deere, Massey Ferguson, New Holand Loaders, Shibaura Diesel, Takeuchi Excavators, Toyosha Tractors, Yanmar Tractors, Yanmar Marine. Hitachi 1.2 – 1.4 kw OSGR Starters.

STARTER #’S: S13-56, S13-56A; S114-177, S114-218, S114-230A, S114-252D, S114-252F, S114-253B, S114-254A, S114-254B, S114-254C, S114-254D, S114-255, S114-258, S114-258A, S114-258C, S114-264, S114-264A, S114-265, S114-295, S114-322A, S114-344, S114-352, S114-370, S114-370A, S114-374, S114-374B, S114-393, S114-403, S114-403B, S114-427, S114-440, S114-441, S114-441A, S114-606A, S114-606B.

LESTER #’S: 16512, 16572, 16584, 16611, 16694, 16732, 16771, 16772, 16773, 16775, 16803, 16811, 16813, 16814, 16816, 16820, 16982, 16986, 16993, 16996, 18053, 18061, 18201, 18205, 18206, 18321, 18324, 18492, 18493, 30727.

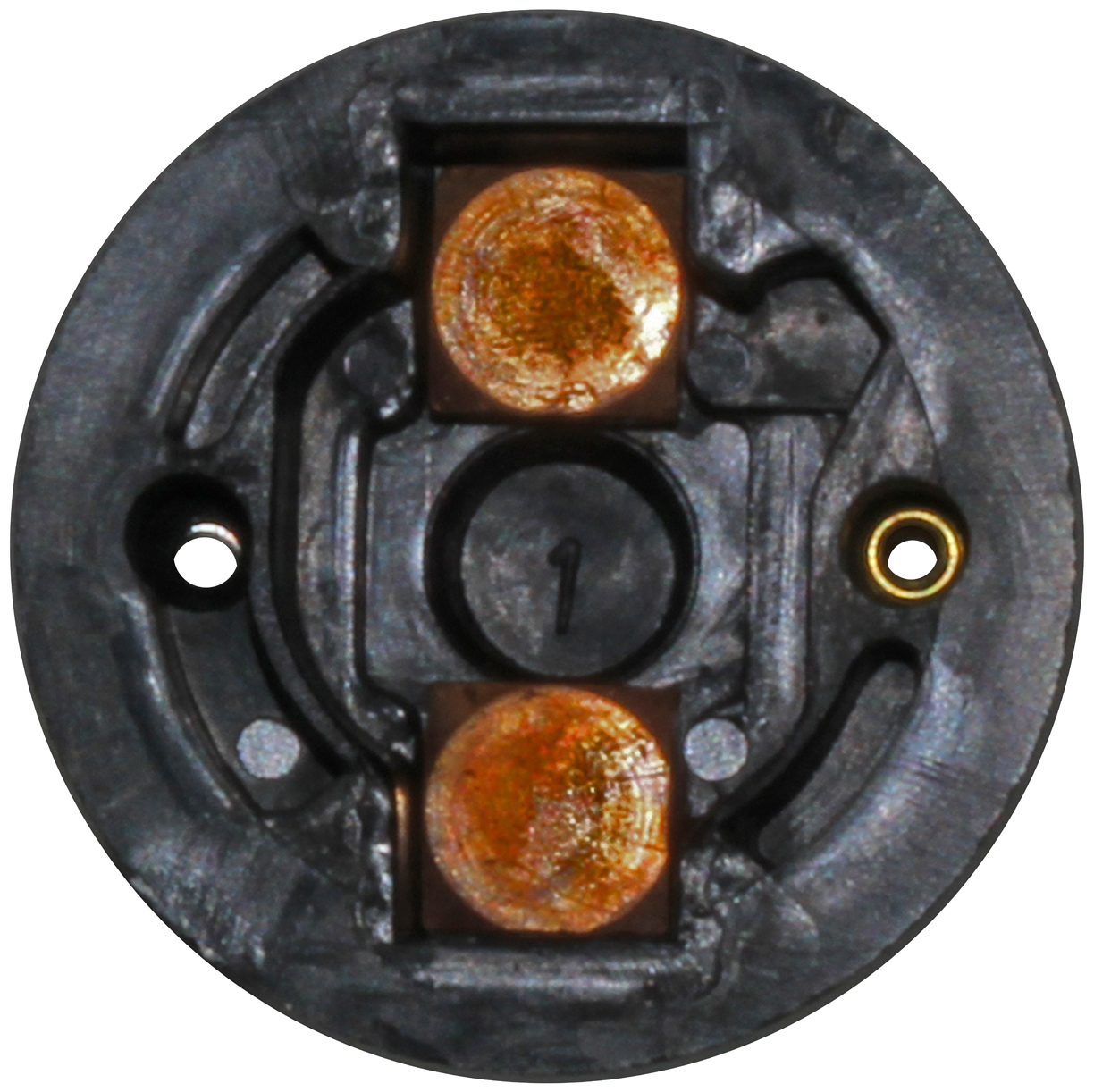

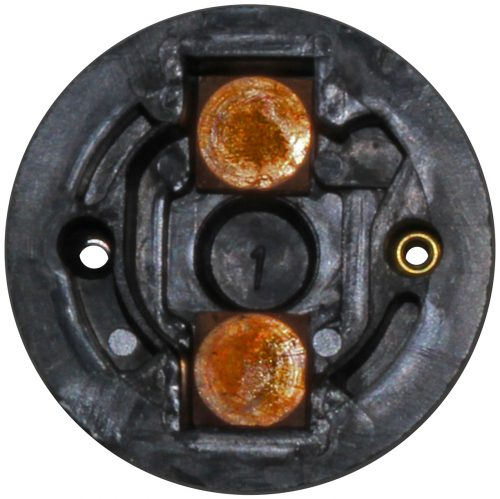

NOTE: Contact Surface is 5.5 mm from Bottom. Similar to 03505 except 03505 has Contact Surface 6.7 mm from Bottom.

Manufacturer: HITACHI

IAT Product Number: 03502

Original Numbers: Hitachi: 2114-17005, 2114-17505, 2114-37005, 2114-37502, 2114-37504, 2114-37505, 2114-47005, 2114-57503, 2114-57508; GD208457-A; IAT: 02522, 02536.

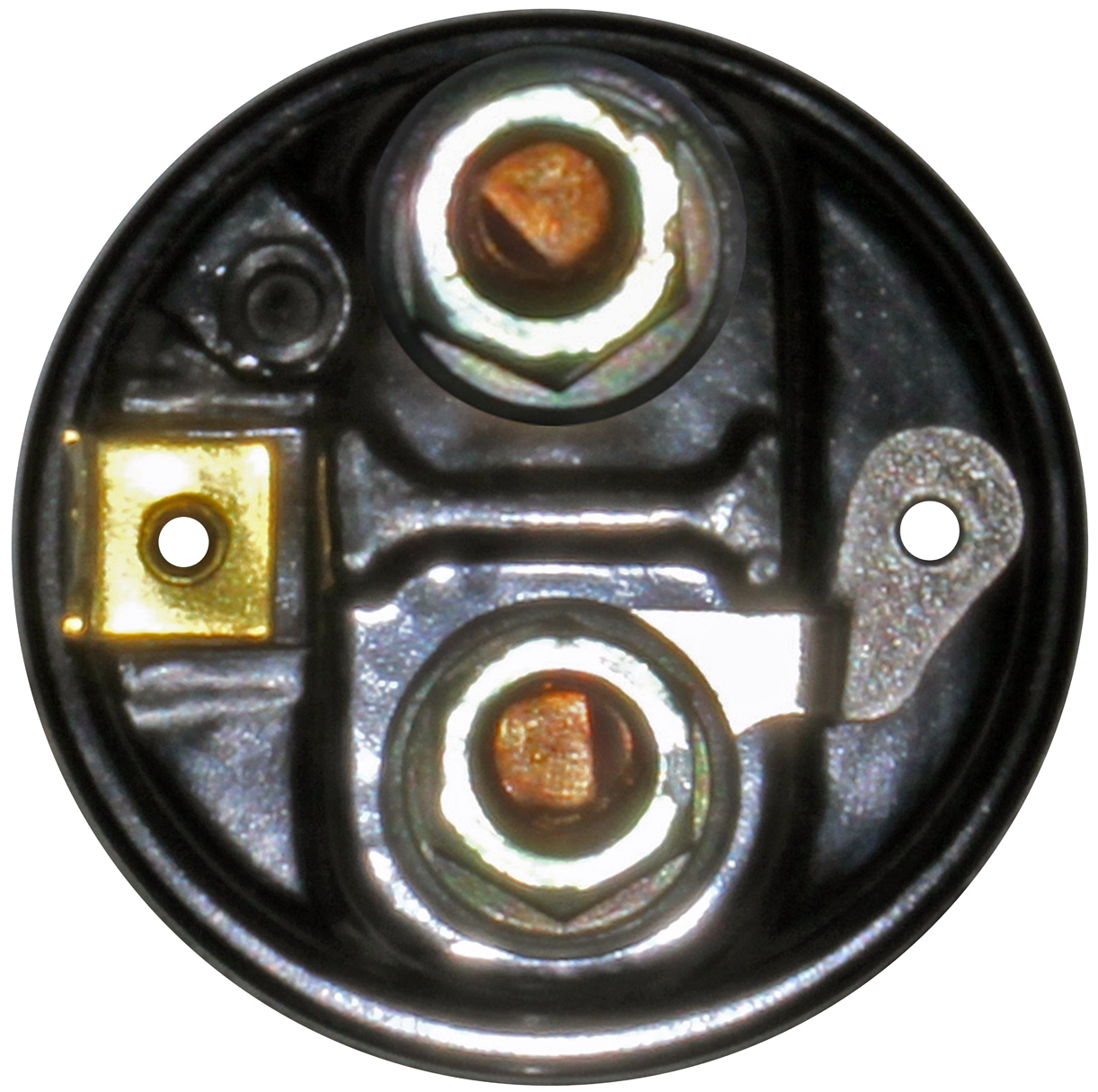

Additional Information: Voltage: 12V, OD: 49.9 mm, Cap Design: CRIMPED, Contacts Depth: 5.4 mm, Battery Terminal Length: 19.0 mm, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade.

Related Items: 02522, 02536
