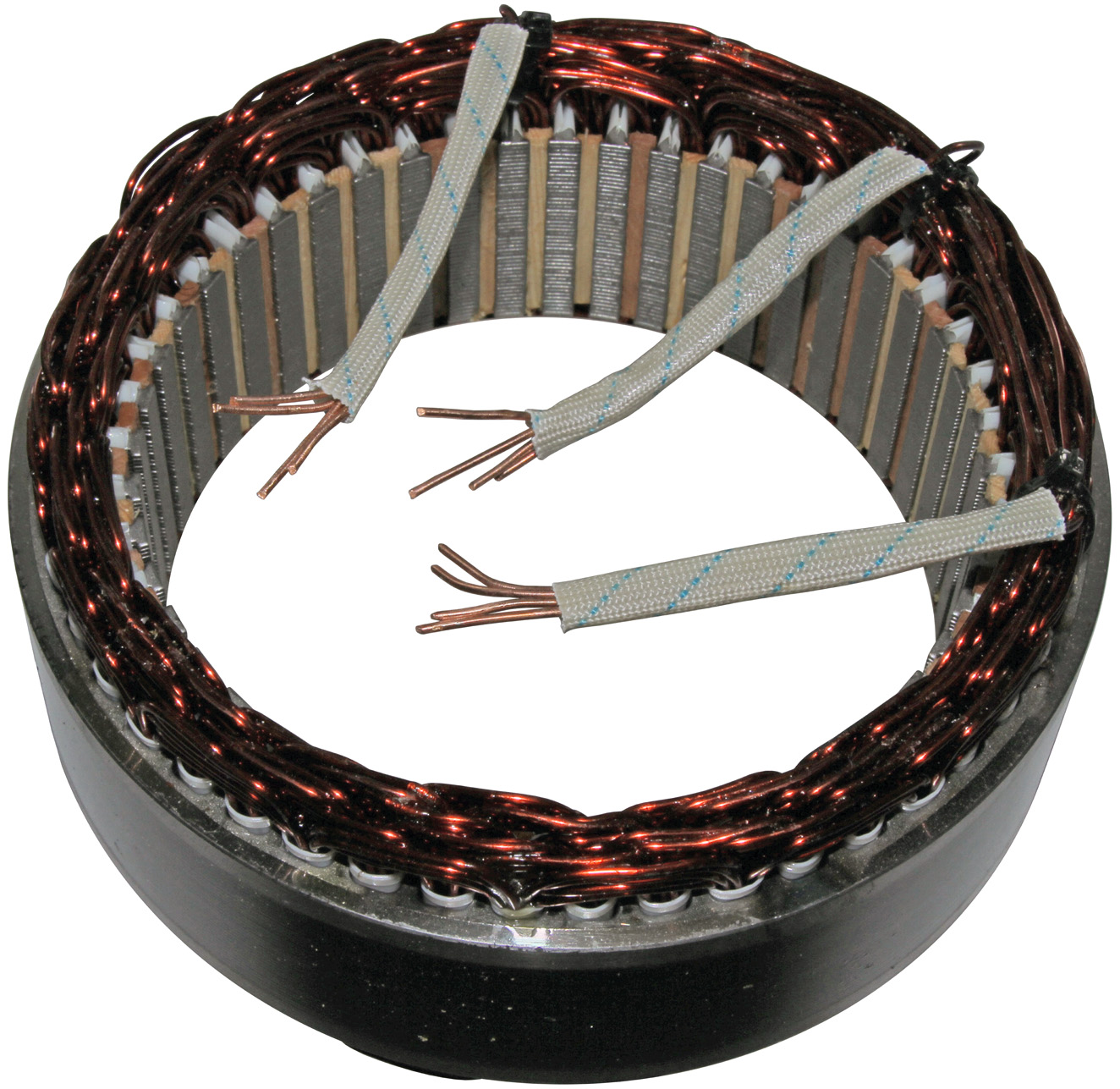

07120 - BOSCH STATOR FOR 120-140 AMP. T1 ALTERNATORS

Product Information:

APPLICATIONS: DAF, Drogmoller, Ikarus Buses, Iveco Trucks, Leyland Buses, Kassbohrer, KHD Engines, Magirus-Deutz, MAN Trucks, Mercedes Trucks
6.4L, Pegaso Buses, Renault Trucks, Scania Buses, Volvo Buses. Bosch 120-140 Amp. T1 Series Alternators.
ALTERNATOR #’S: 0-120-689-506, 0-120-689-511, 0-120-689-513, 0-120-689-517, 0-120-689-518, 0-120-689-520, 0-120-689-522, 0-120-689-526 to 0-120-689-528, 0-120-689-530 to 0-120-689-535, 0-120-689-538 to 0-120-689-543, 0-120-689-545, 0-120-689-546, 0-120-689-548 to 0-120-689-553, 0-120-689-555, 0-120-689-557, 0-120-689-558, 0-120-689-559, 0-120-689-561, 0-120-689-562, -563, 0-120-689-564, 0-120-689-566, 0-120-689-567, 0-120-689-569 to 0-120-689-578, 0-120-689-582 to -585, 0-120-689-587, 0-120-689-588; F-000-LD0-202, F-000-LD0-210, F-000-LD0-212.
LESTER #’S: 12376, 12377, 12576, 12577, 12593, 12608, 12610, 12611, 12612, 12615, 12616, 12617, 12618, 12623, 12624, 12625.

Manufacturer: BOSCH

IAT Product Number: 07120

Original Numbers: Bosch: 1-125-047-004, 1-125-047-005, 1-125-047-007; DAF: 696001, 1296233; Iveco: 42537503, 93163823; KHD: 122-13959, 132-0543; MAN: 81-26106-6016, 81-26106-6022; Mercedes: 000-154-72-25; Scania: 1407308; Volvo: 1398766, 1698766.

Additional Information: Voltage: 24V, Amperage: 120-140 Amp., Dimensions: ID – 123.8 mm, OD – 163.9 mm, Stack Thickness: 46.2 mm, Exposed Stack Thickness: 35.6 mm, Slots: 48.
