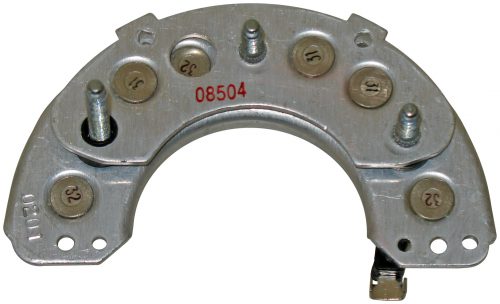

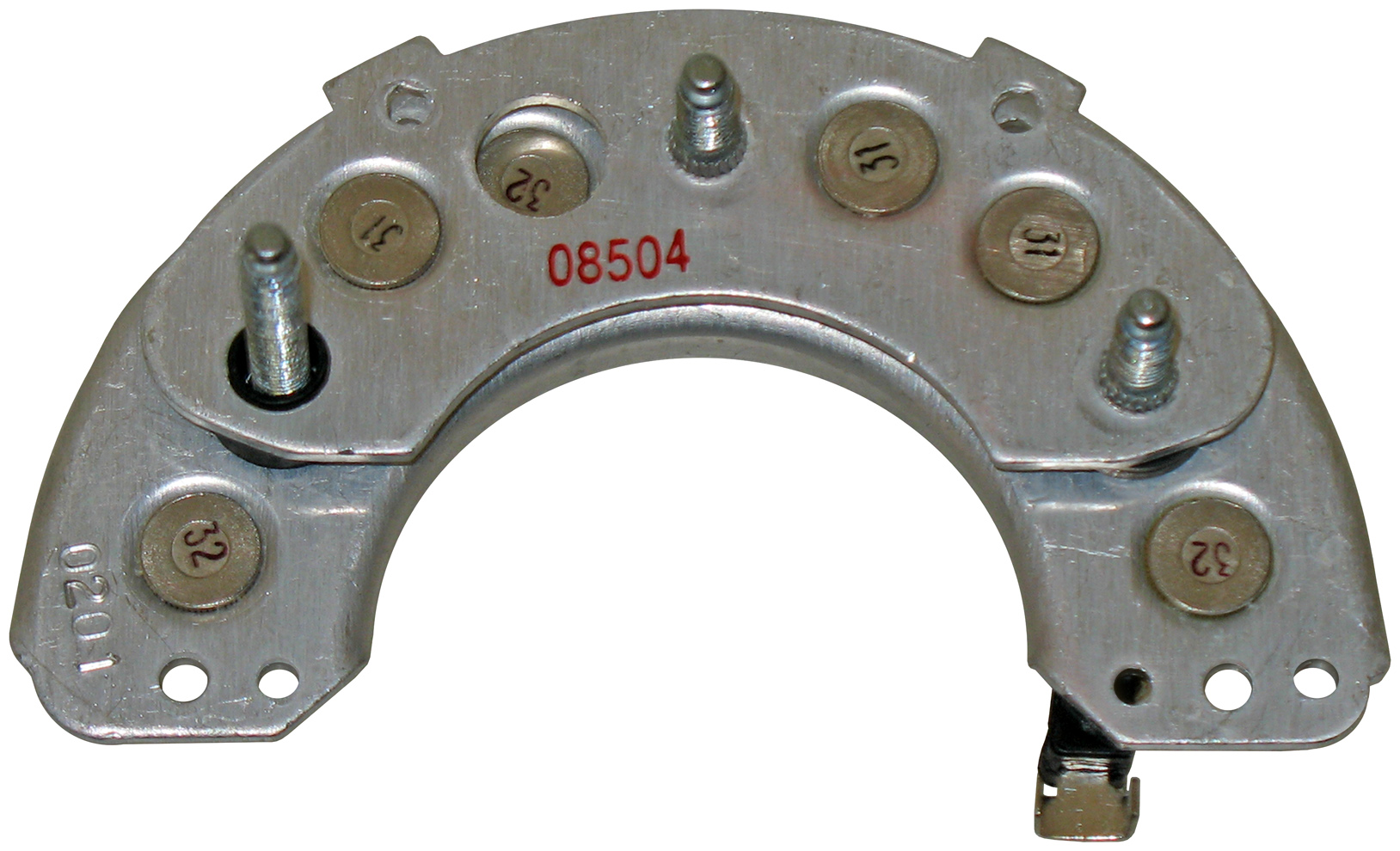

08504 - HITACHI RECTIFIER FOR 50-60 AMP. ALTERNATORS

Product Information:

APPLICATIONS: Daewoo Excavators, Gilcrest Paving Equipment, Isuzu Engines, JCB Excavators, Nissan 200SX, 720, B210, B310, Pulsar NX, Sentra, Subaru 1.8L, UD Trucks. Hitachi IR/EF 50-60 Amp. Alternators.

ALTERNATOR#’S: LR150-79S, LR150-94B, LR150-98B, LR150-99, LR150-99B, LR150-100, LR150-101, LR150-101B, LR150-125, LR150-125B, LR150-132, LR150-132B, LR150-140, LR150-165, LR150-177, LR150-186C, LR150-194, LR160-78, LR160-78B, LR160-78C, LR160-121, LR160-124, LR160-138, LR160-412, LR160-412B, LR160-412F, LR160-412G, LR160-440, LR165-03; LR225-68B, LR225-80; LR235-58, LR235-62, LR235-68, LR235-69, LR235-70; LR240-21, LR240-25, LR240-26.

LESTER #’S: 12237, 12278, 14244, 14255, 14299, 14300, 14303, 14585, 14647, 14652, 14659, 14742, 14744, 14745, 22254, 23466.

Manufacturer: HITACHI

IAT Product Number: 08504

Original Numbers: Hitachi: L150-13206, L160-6320; Isuzu: 5-81262-006-0; Nissan: 23230-20W00, 23230-W7101, 23230-W7101A; Subaru: 49534-7601; Transpo: IHR710, IHR722.

Additional Information: Voltage: 12V, Dimensions: 111.0 mm OD, Distance between Mounting Holes: 69.0 mm, Battery Terminal: M5 X 0.8 Post.
