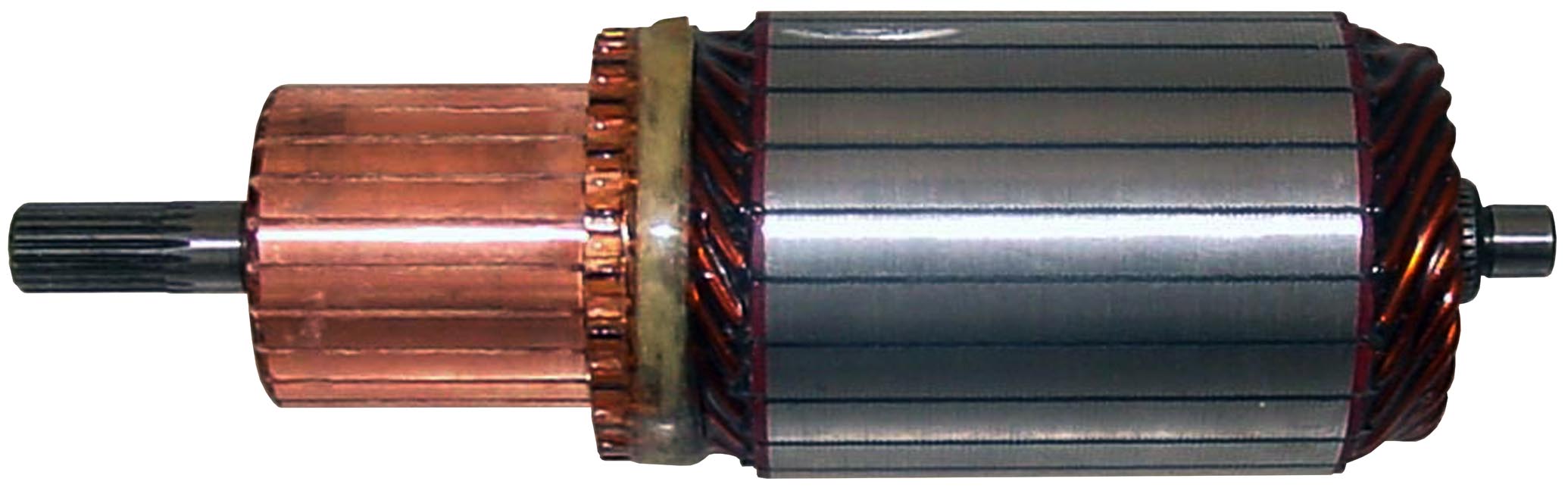

04513 - DENSO 2.0 KW OSGR REPLACEMENT STARTER ARMATURE

Product Information: APPLICATIONS: Allis Chalmers, Elgin Sweeper, Chevy Diesel, Caterpillar, Chrylser, Dodge Trucks, Gehl Graders, GMC Trucks, Hyster Lift trucks, Isuzu Industrial, John Deere, Kubota, Lexus, Lister-Petters, Mazda, Mitsui Deutz, New Holland, Thermo King, Toyota Diesel, UPS Trucks, Yanmar. Denso 2.0 kw OSGR Starters.
STARTER #?S: 028000-5060, 028000-6250, 028000-7000, 028000-7001, 028000-7002, 028000-7003, 028000-7370, 028000-7373, 028000-7660, 028000-7740, 028000-7741, 028000-7790, 028000-7791, 028000-8130, 028000-8210, 028000-8370, 028000-8371, 028000-8760, 028000-8762, 028000-9030, 028000-9031, 028000-9032, 028000-9670, 028000-9830, 028000-9831; 128000-0020, 128000-0040, 128000-0360, 128000-0362, 128000-0570, 128000-0950, 128000-0960, 128000-1040, 128000-1041, 128000-1880, 128000-2070, 128000-2060, 128000-2161, 128000-2280, 128000-2880, 128000-2881, 128000-3100, 128000-3161, 128000-3420, 128000-3790, 128000-3810, 128000-4661, 128000-6360, 128000-6400, 128000-6500, 128000-7300, 128000-7353, 128000-7380, 128000-7381, 128000-7382, 128000-7383, 128000-8120, 128000-8140, 128000-8142, 128000-8150, 128000-8152, 128000-8170, 128000-8171, 128000-8383, 128000-9592; 228000-0240, 228000-0380, 228000-0381, 228000-0400, 228000-0450, 228000-0640, 228000-0691, 228000-1090, 228000-1091, 228000-1920, 228000-2190, 228000-2191, 228000-2192, 228000-2970, 228000-3840, 228000-3841, 228000-3842.
LESTER #?S: 16739, 16822, 16824, 16830, 17084, 17115, 17189, 17314, 17360, 17365, 17373, 17378, 17387, 17547, 18139, 18151, 18153, 18154, 18157, 18178, 18187, 18275, 18995, 19745, 19914, 19915, 19916, 31332, 31354, 31373.

Manufacturer: DENSO

IAT Product Number: 04513

Original Numbers: Denso: 028200-2140, 028200-7430; Isuzu: 5-81121-029-0; Kubota: 15425-63071; Toyota: 28160-54070, 28160-54071; Yanmar: X02820-02140.

Additional Information: Voltage: 12V, Splines: 19, Bars: 23, Body Diameter: 50.4 mm, Shaft Length: 167.6 mm, Lam Stack Length: 62.0 mm, Gear Diameter: 9.8 mm, Com Diameter: 35.0 mm, CE Shaft Diameter: 10.0 mm, DE Shaft Diameter: 8.0 mm.
