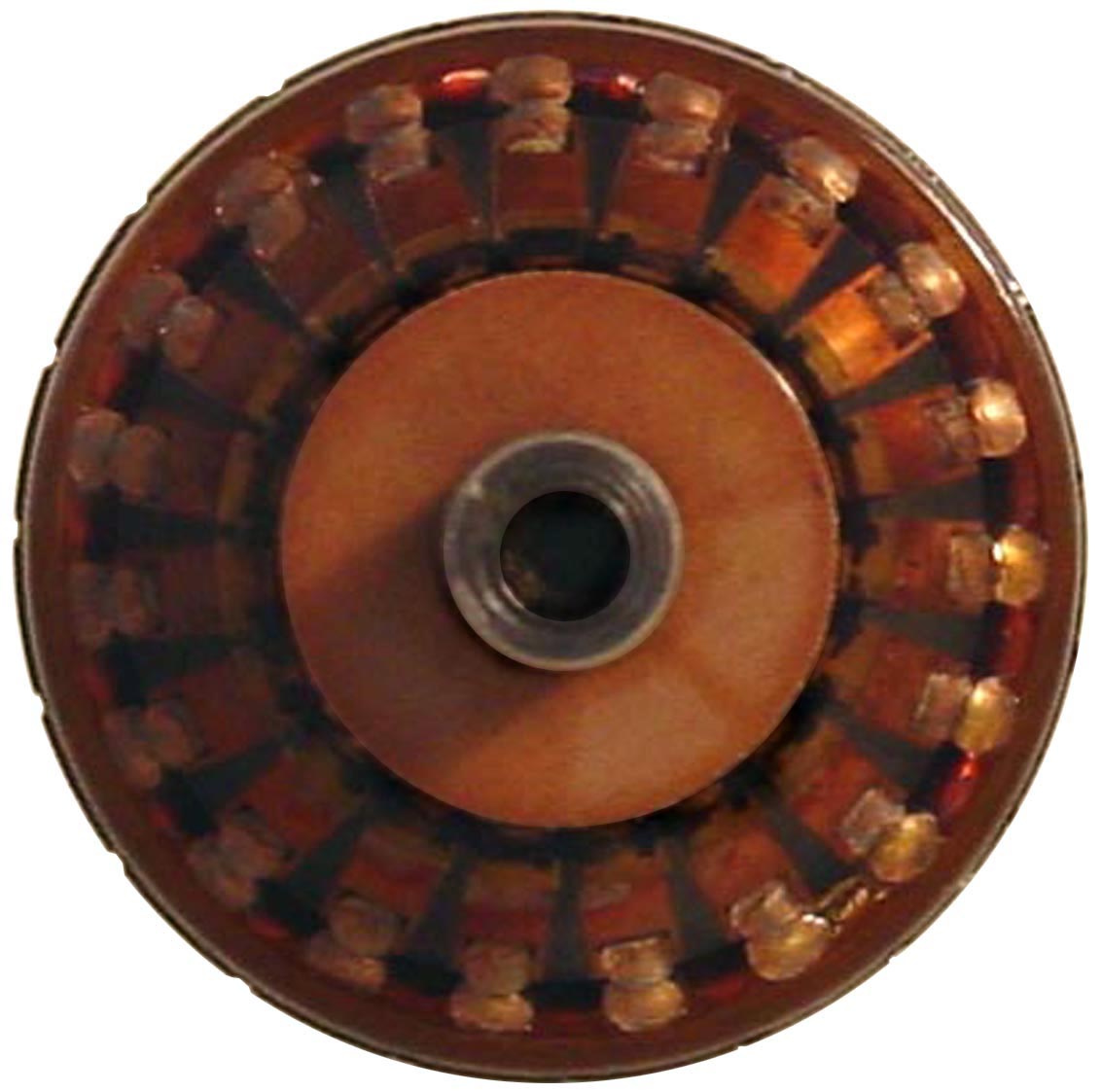

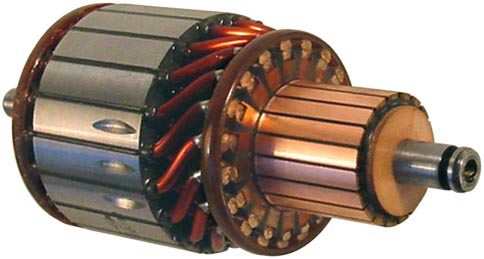

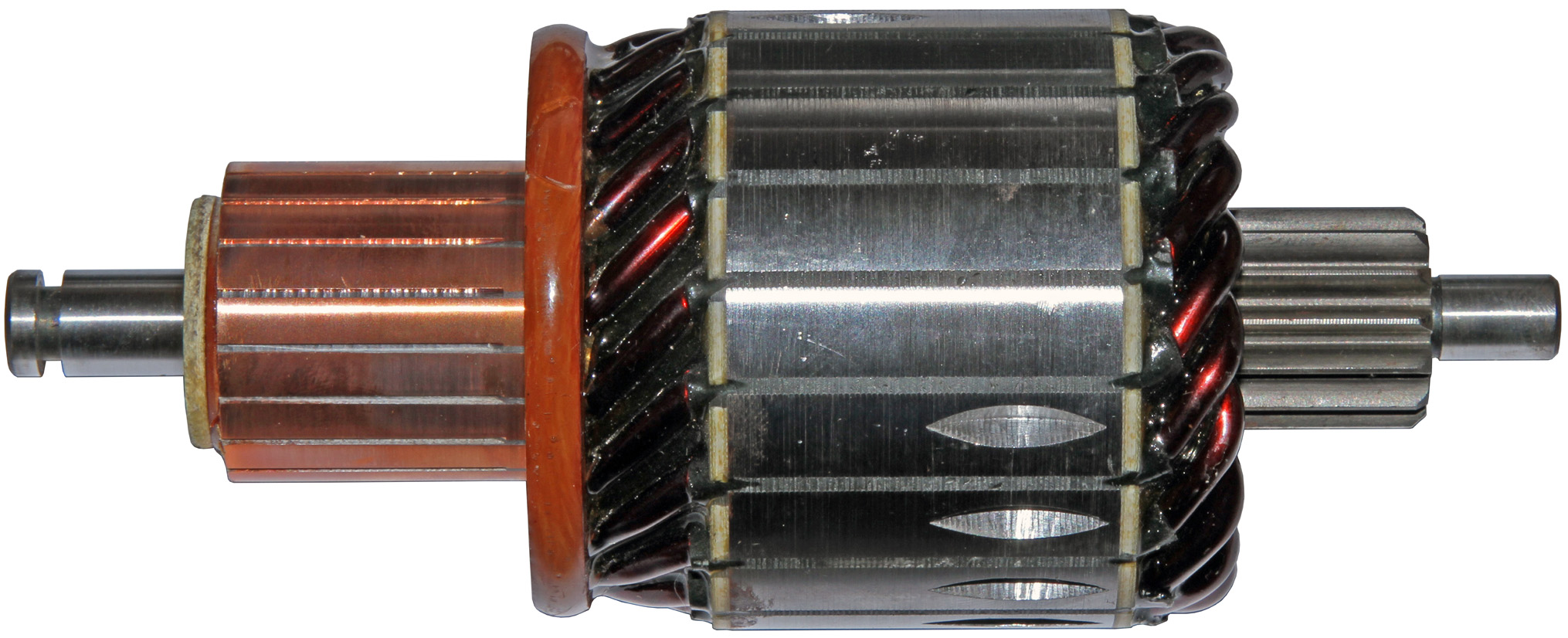

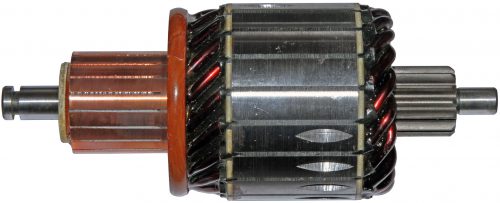

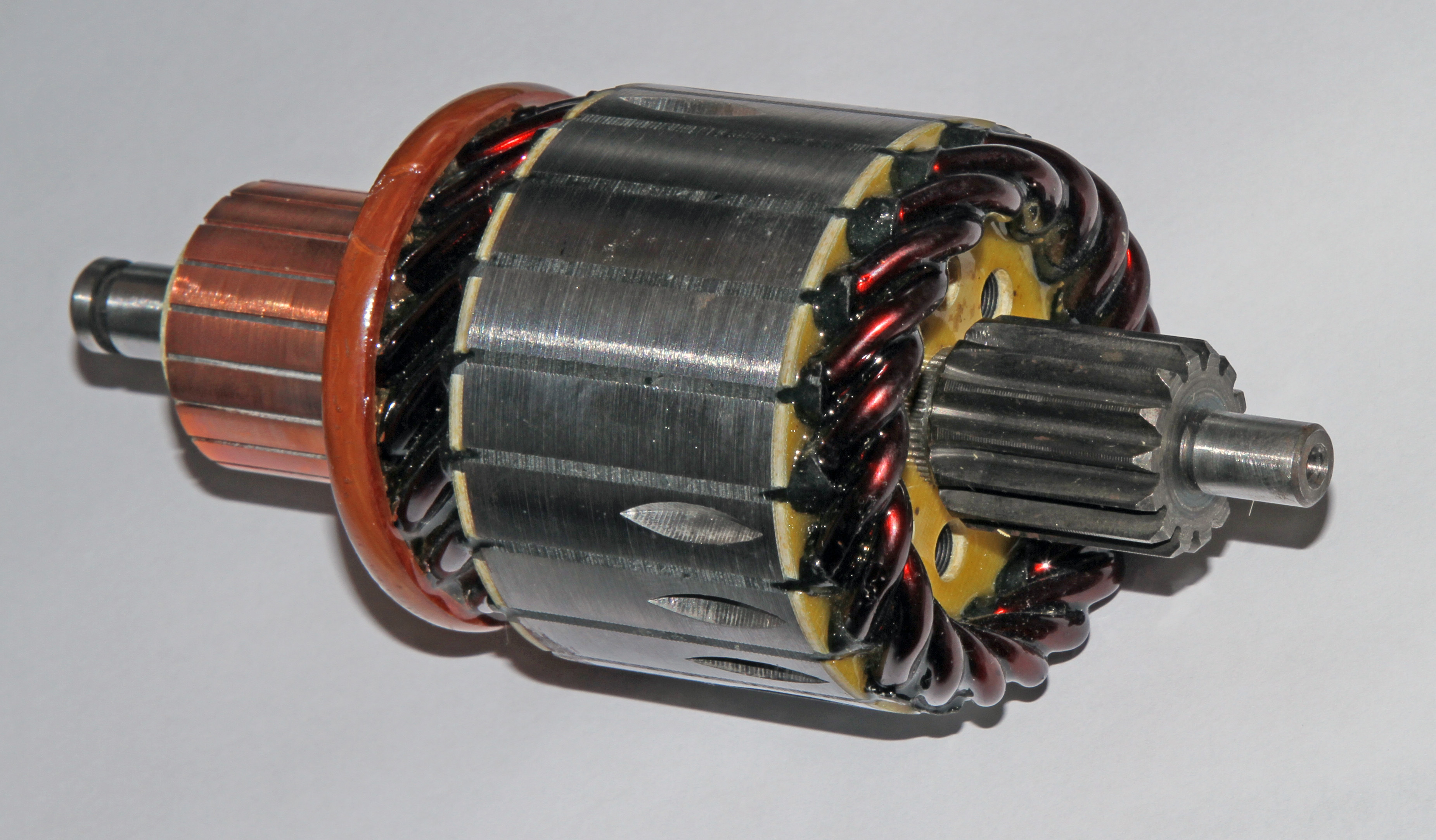

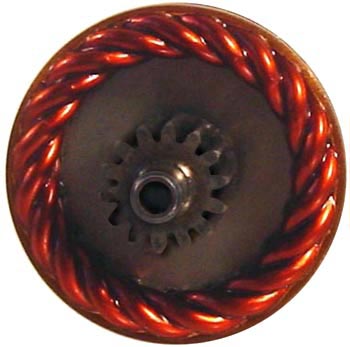

04130 - BOSCH 2.3 KW PLGR REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Agrifull Tractors, Bomag Compactor, Ford F250 / F350 3.9L, Gehl Skid Steers, Hamm Rollers, Iveco Trucks, John Deere Tractors, KHD, New Holland, Stone Rollers, Vermeer Deutz Diesel. Bosch 2.3-2.6 kw PLGR Starters.
STARTER #’S: 0-001-223-001, 0-001-223-002 to 0-001-223-004, 0-001-223-007, 0-001-223-010, 0-001-223-012, 0-001-223-016, 0-001-223-021, 0-001-223-022, 0-001-223-024, 0-001-223-104, 0-001-223-500 to 0-001-223-507; SR9972X, SR9984X.
LESTER #’S: 18230, 18526, 18950, 18951, 32471, 32680.

Manufacturer: BOSCH

IAT Product Number: 04130

Original Numbers: Bosch: 6-033-AD0-010, 6-033-AD0-436, 6-033-AD1-059; Case: 9972025; Ford: BF9T1-1005-AA; Iveco: 42533486, 42538784, 42542867; Peugeot: 5821G0; Renault: 50-01-861-910; Same: 01035710; Volvo: 2908863; ORME: IM2138.

Additional Information: Voltage: 12V, Teeth: 14, Bars: 19, Body Diameter: 58.0 mm, Gear Diameter: 20.8 mm, Shaft Length: 144.5 mm, Lam Stack Length: 35.2 mm, DE Shaft Diameter: 8.0 mm, CE Shaft Diameter: 10.0 mm.
