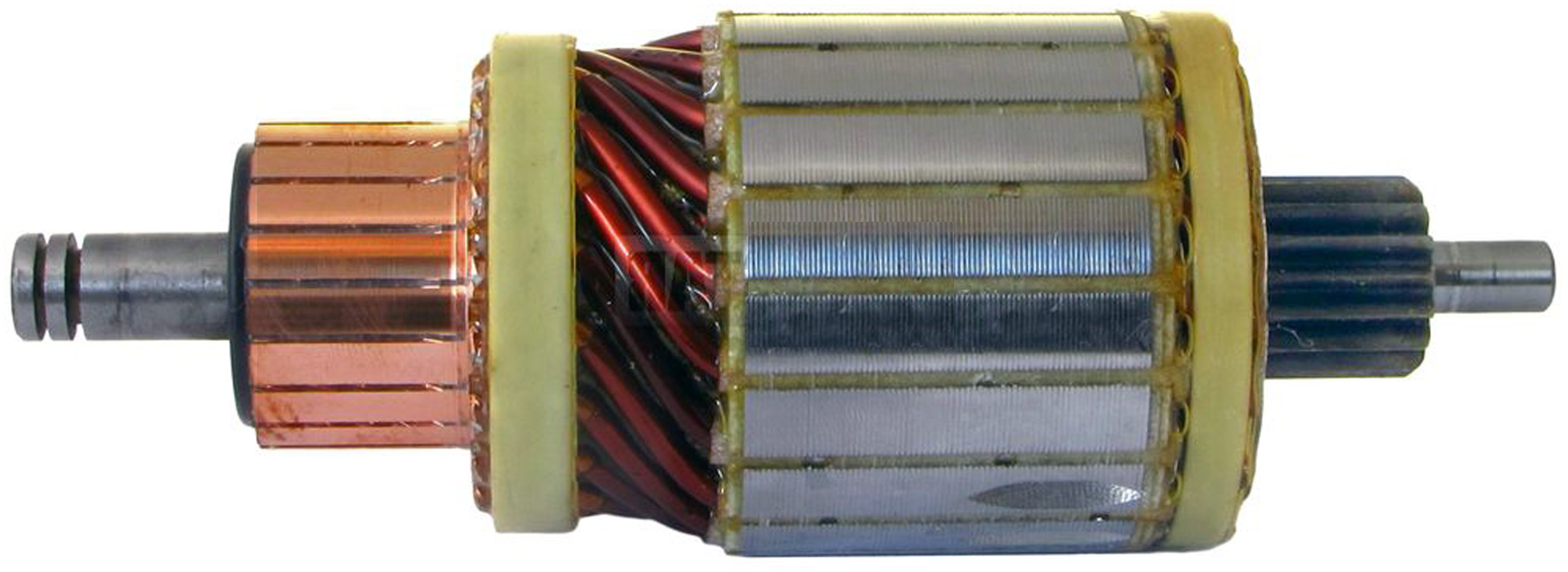

04329 - VALEO 1.4 - 2.0 KW PMGR REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Audi, Baker Forklift, Citroen, Fiat, Ford, Hyundai, John Deere Tractors, Mercedes S Class, Peugeot, Renault, Seenerigie Marine, Toro Lawn Mowers, Volvo, Volkswagen. Valeo 1.1 – 2.5 kw PLGR Starters.

STARTER #’S: D7R1, D7R2, D7R3, D7R4, D7R5, D7R8, D7R9, D7R11, D7R12, D7R13, D7R14, D7R15, D7R16, D7R17, D7R18, D7R20, D7R22, D7R24, D7R25, D7R26, D7R27, D7R35, D7R36, D7R48, D7R151; D7RS29, D7RS30, D7RS50, D7RS130, D7RS150, D7RS291; 432582, 432613, 432630, 432637, 432639, 432666, 432667, 432668, 432672, 432674, 432684, 438011, 438012, 438013, 438019, 438030, 438068, 438069, 438075, 438076, 438078, 438096, 438152, 438205; Bosch: SR408X.

LESTER #’S: 17030, 17086, 17724, 17750, 17757, 17820, 17977, 18360, 18501, 18502, 19794, 30181, 30162, 30181, 30665, 30719, 31133, 32456, 32587, 32703, 33015, 33101, 33107, 33109, 33112, 33226, 33313.

Manufacturer: VALEO

IAT Product Number: 04329

Original Numbers: Valeo: 182591, 594112, 594278, 594344, NE824; Citroen: 5821D9; Fiat: 9948722, Hyundai: 36150-42300; Mercedes: 000-151-56-15; Cargo: 135387; OREM: 302496; ORME: IM542; WAI: 61-9421.

Additional Information: Voltage: 12V, Teeth: 16, Bars: 19, Body Diameter: 50.0 mm, Shaft Length: 141.92 mm, Gear Diameter: 20.3 mm, Lam Stack Length: 35.0 mm, DE Shaft Diameter: 7.0 mm, CE Shaft Diameter: 7.0 mm.

Related Items: D7R11, D7R19, S432644, D7RS29, S438075, D7R14, SD7R14, S17724VA, S438076, D7RS31, S438077, S438078, D7R33, D7R8, SD7R8
