Product Information:

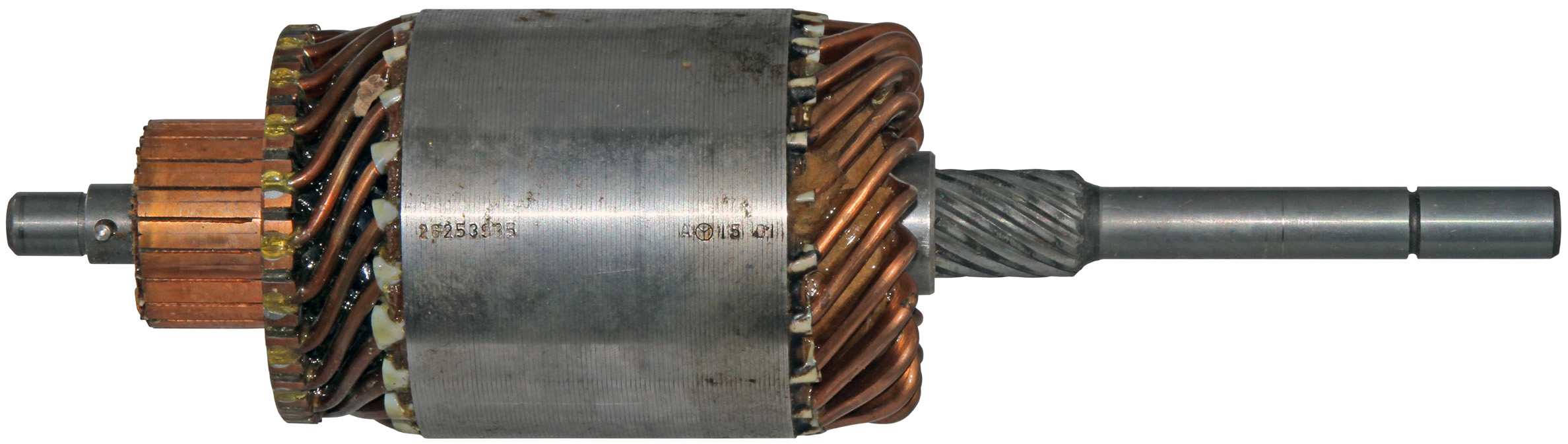

APPLICATIONS: JCB Tractors. Lucas-TVS M127 Type 2.8 kw Starters.
STARTER #’S: 26925196; LRS306.
NOTE: Same as 04402, except 04402 has Shaft Diameter 17.0 mm.
Manufacturer: LUCAS
IAT Product Number: 04431
Original Numbers: Lucas: 26253935.
Additional Information: Voltage: 12V, Splines: 12, Bars: 21, Rotation: CW, Body Diameter: 84.0 mm, Comm Diameter: 41.0 mm, Shaft Length: 302.0 mm, Lam Stack Length: 76.2 mm, DE Shaft Diameter: 14.3 mm, CE Shaft Diameter: 12.7 mm.
