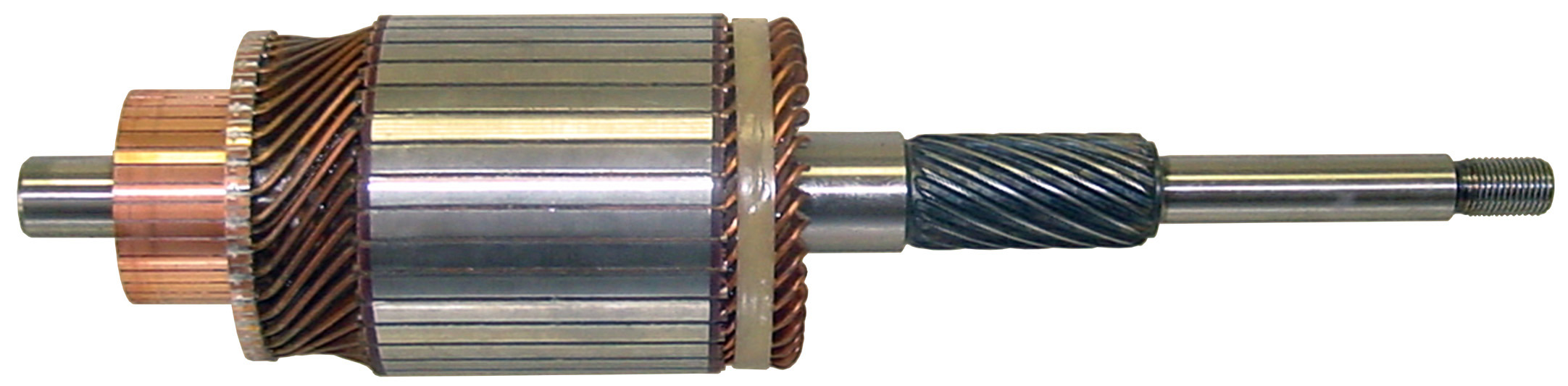

04501 - NIKKO 24V / 3.7-5.2 KW DD REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Isuzu Industrial, Komatsu Crawlers / Compressors / Graders / Lift Trucks, Mitsubishi Industrial. Nikko 24V / 3.7-5.2 kw DD Starters.
STARTER #’S: 0-21000-1460, 0-21000-3271, 0-21000-3480, 0-21000-3491, 0-21000-3520, 0-21000-3650, 0-21000-3651, 0-21000-3661, 0-21000-3690, 0-21000-3711, 0-21000-3783, 0-21000-3784, 0-21000-3931, 0-21000-4132, 0-21000-4190, 0-21000-4191, 0-21000-4192, 0-21000-4193, 0-21000-4471, 0-21000-4850, 0-21000-4870, 0-21000-4871, 0-21000-5090.
LESTER #’S: 18068, 18072, 18074, 18076, 18100.

Manufacturer: NIKKO

IAT Product Number: 04501

Original Numbers: Nikko: 1-21100-1190; Isuzu: 1-81121-007-0; Mitsubishi: ME711016; OREM: 300856; ORME: IM3002; WAI: 61-8402.

Additional Information: Voltage: 24V, Splines: 15, Bars: 33, Rotation: CW, Gear Diameter: 27.4 mm, Body Diameter: 83.0 mm, Comm Diameter:  50.0 mm, Shaft Length: 355.2 mm, Threads: M14 x 1.5 (LH), DE Shaft Diameter: 15.8 mm, CE Shaft Diameter: 18.8 mm.
