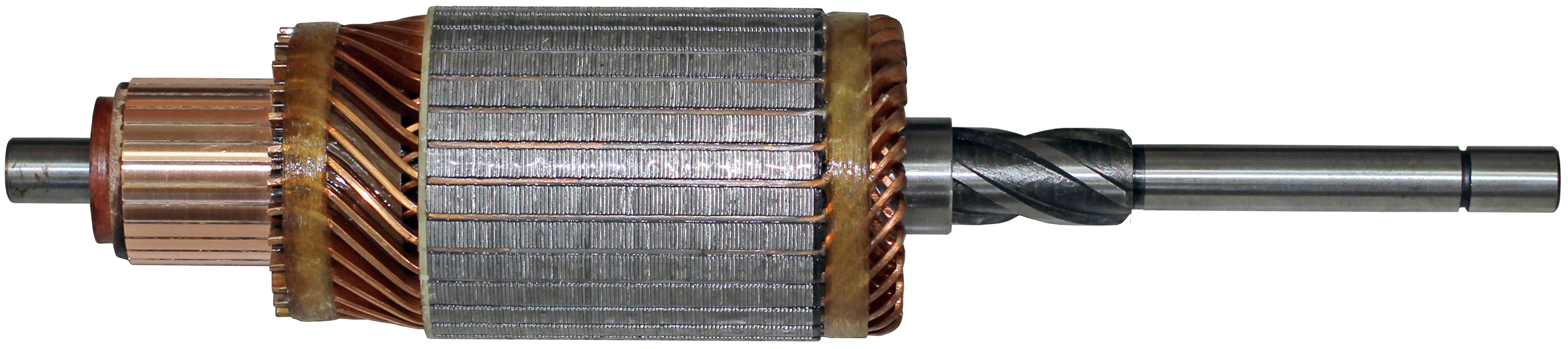

04519 - DENSO 4.0 KW DD REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: AGCO Allis, AGCO Gleaner Combines, Allis Chalmers Combines / Tractors, Case Combines, Caterpillar Forklifts, Deutz-Allis Combines, Hino Trucks, John Deere Tractors, Mercury Marine, Mercruiser Marine Diesel Engines, Onan Marine Engines, Perkins Engines. Denso 4.0 kw DD Starters.
STARTER #’S: 028000-3290, 028000-3291, 028000-3292, 028000-3650, 028000-3970, 028000-3971, 028000-4930, 028000-5040, 028000-5460, 028000-5960, 028000-5961, 028000-6920, 028000-6921, 028000-7430, 028000-7431; 128000-0260, 128000-0770, 128000-0771, 128000-0772, 128000-1671, 128000-2000, 128000-3690, 128000-4340.
LESTER #’S: 16627, 16628, 16629, 16635, 16644, 17103, 17349, 17353, 17369, 17386, 17398.

Manufacturer: DENSO

IAT Product Number: 04519

Original Numbers: Denso: 028200-1260, 028200-1261, 028200-2290; Allis Chalmers: 269892; Caterpillar: 4N6942; John Deere: AR66778; OREM: 300849; ORME: IM3090; WAI: 61-8200-1.

Additional Information: Voltage: 12V, Spline: 4, Bars: 29, Rotation: CW, Gear Diameter: 24.6 mm, Body Diameter: 85.0 mm, Shaft Length: 395.5 mm, Lam Stack Length: 101.0 mm, Comm Diameter: 48.0 mm, DE Shaft Diameter: 17.0 mm, CE Shaft Diameter: 17.0 mm.
