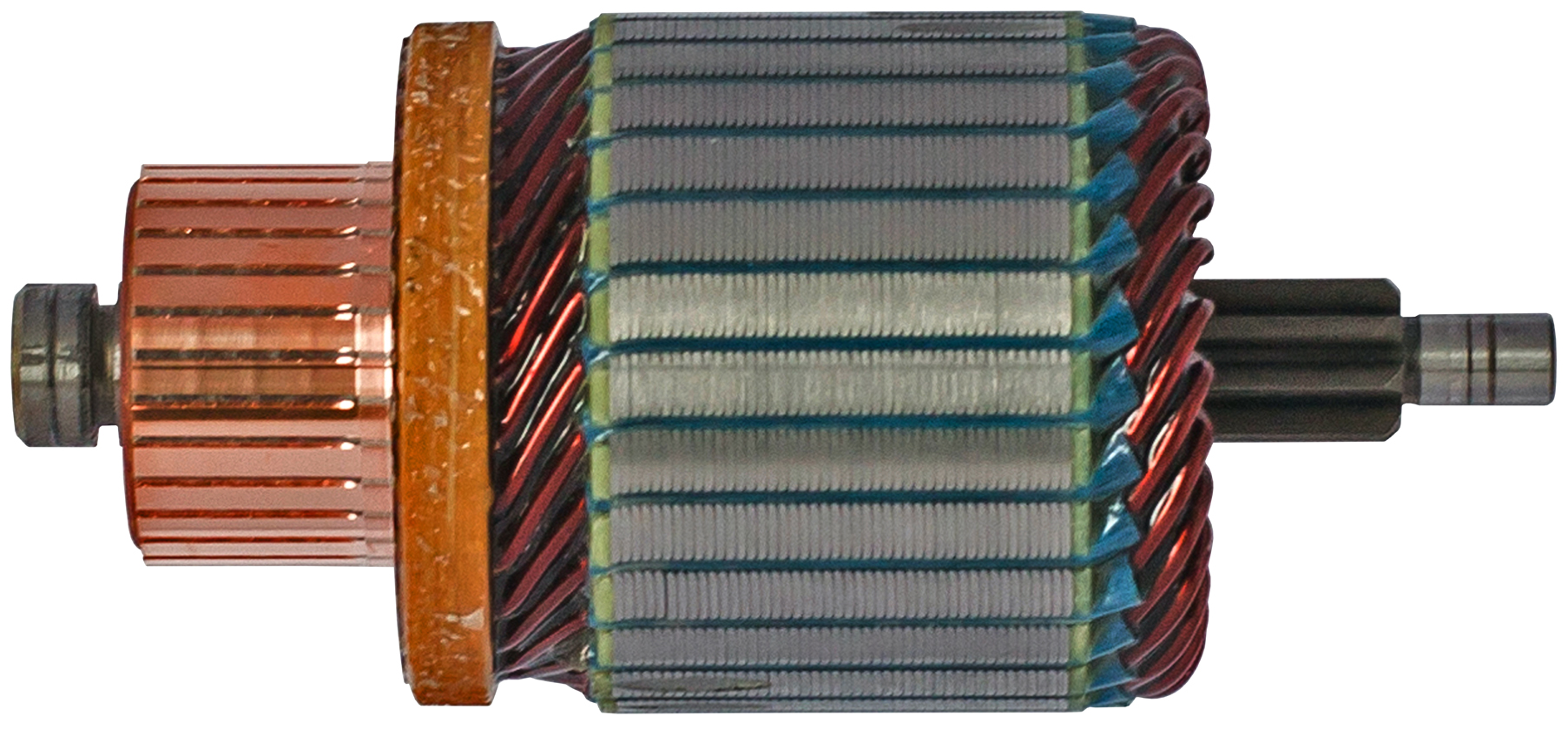

04529 - HITACHI 1.4 KW PMGR TYPE REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Infiniti G20 – I30, Nissan Maxima -NX1600 – Pulsar – Sentra – 200SX, Isuzu Industrial, Kubota Tractor, Yanmar Engines, Yanmar Marine.
Hitachi 1.4 kw PMGR Type Starters.
STARTER #’S: S114-800, S114-800A, S114-800B, S114-801A, S114-801B, S114-801C, S114-802, S114-802A, S114-804, S114-805, S114-806, S114-806A, S114-808, S114-814, S114-815, S114-815A, S114-816, S114-817, S114-817A, S114-818A, S114-821, S114-821A, S114-831, S114-831A, S114-833B, S114-844, S114-844R.
LESTER #’S: 17146, 17695, 17713, 17745, 17779, 17980, 18219, 18288, 18290, 18328, 18440, 19067, 19696, 31224, 32265.

Manufacturer: HITACHI

IAT Product Number: 04529

Original Numbers: Hitachi: 2114-11111, 2114-21111, GD213546-B; Isuzu: 8-97130-304-0; Nissan: 23310-0M300, 23310-31U00; OREM: 300843; ORME: IM3044; WAI: 61-8114.

Additional Information: Voltage: 12V, Teeth: 8, Bars: 29, Body Diameter: 50.5 mm, Shaft Length: 111.0 mm, Lam Stack Length: 31.5 mm, Comm Diameter: 29.0 mm, Gear Diameter: 12.4 mm, CE Shaft Diameter: 12.0 mm, DE Shaft Diameter: 6.7 mm.
