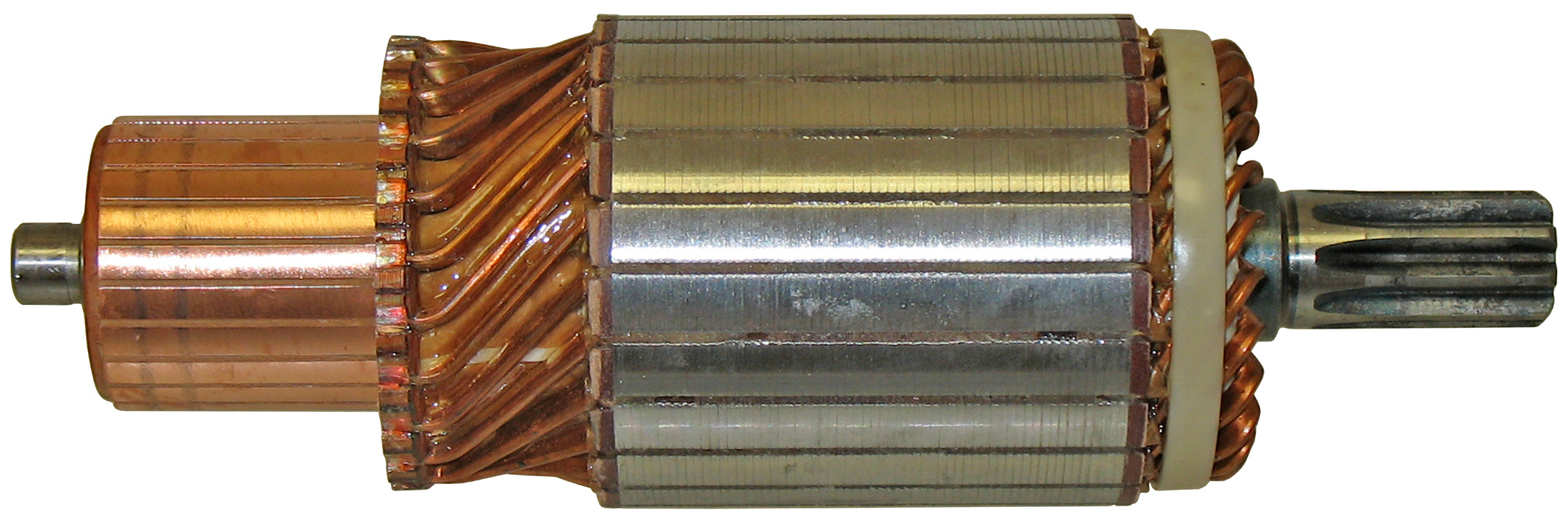

04580 - DENSO 2.5 KW OSGR REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Allis Chalmers, Case, Caterpillar, Cummins, Ford Farm Tractors, Hyster Lift Trucks, Isuzu Industrial, John Deere, Komatsu, Kubota, Mitsui-Deutz, Perkins, Teledyne, Toyota Lift Trucks. Denso 2.5 kw OSGR Starters.
STARTER #’S: 028000-5300, 028000-5301, 028000-5510, 028000-5540, 028000-5550, 028000-5551, 028000-5552, 028000-5553, 028000-5690, 028000-5691, 028000-5832, 028000-5833, 028000-5840, 028000-5850, 028000-5860, 028000-5861, 028000-5862, 028000-6010, 028000-6011, 028000-6012, 028000-6200, 028000-6340, 028000-6460, 028000-6950, 028000-7240, 028000-7241, 028000-7242, 028000-7451, 028000-7810, 028000-8500, 028000-8561; 128000-1000, 128000-1001, 128000-1002, 128000-1570, 128000-1571, 128000-1760, 128000-2930, 128000-3080, 128000-3512, 128000-4970, 128000-4971, 128000-6170, 128000-6920, 128000-7280, 128000-8300, 128000-8620; 228000-0630, 228000-0631, 228000-1750, 228000-1751, 228000-1830, 228000-1831, 228000-1832, 228000-6670; 9722809-183.
LESTER #’S: 16614, 16896, 16967, 17283, 17286, 17313, 17331, 17376, 17609, 17631, 18180, 18181, 18189, 18190, 18402, 18505, 18548, 19748, 19846, 19857, 31369, 31376, 32893.

Manufacturer: DENSO

IAT Product Number: 04580

Original Numbers: Denso: 028200-1590, 028200-2230; Isuzu: 1-81121-024-0; Toyota: 28160-77090; OREM: 300832; ORME: IM3010; WAI: 61-8209.

Additional Information: Voltage: 24V, Teeth: 9, Bars: 23, Body Diameter: 59.5 mm, Shaft Length: 187.2 mm, Gear Diameter: 16.8 mm, Comm Diameter: 36.3 mm, DE Shaft Diameter: 16.8 mm.
